Products TEKO – Plastic Formwork Panels for Concrete
TEKO plastic formwork panels are engineered for fast, lightweight and cost-efficient concrete construction, forming a flexible and reusable modular system.
The TEKO product range includes high-quality formwork panels, handles, compensators, internal and external corners, alignment walings, pull push props, tie rods, nuts and other essential accessories for reliable and durable concrete formwork.

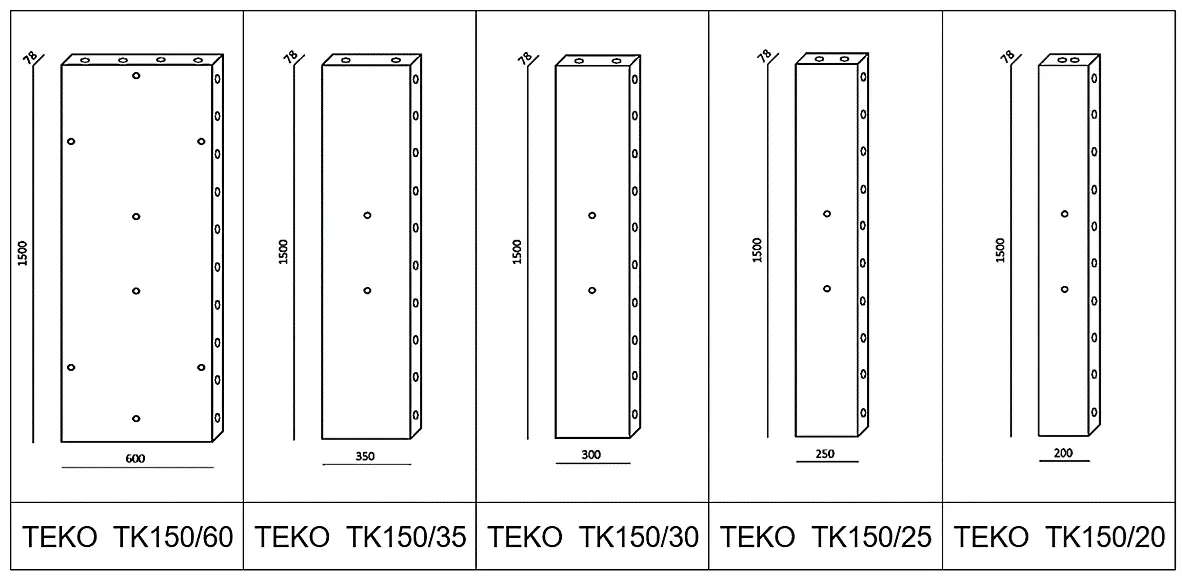

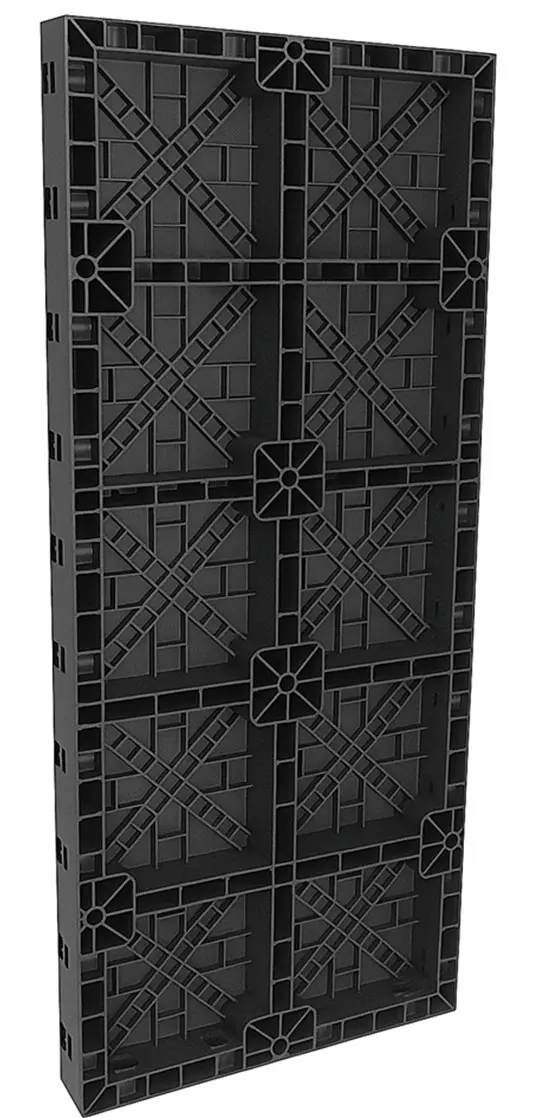

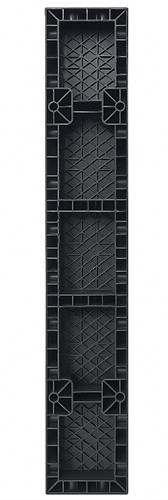

TEKO Plastic Formwork Panels – Height 150 cm
High-quality TEKO plastic formwork panels with a height of 150 cm, available in various widths: 150×60 cm, 150×35 cm, 150×30 cm, 150×25 cm, and 150×20 cm. These reusable panels are lightweight (up to 12 kg), easy to handle, and ideal for fast and efficient concrete forming.

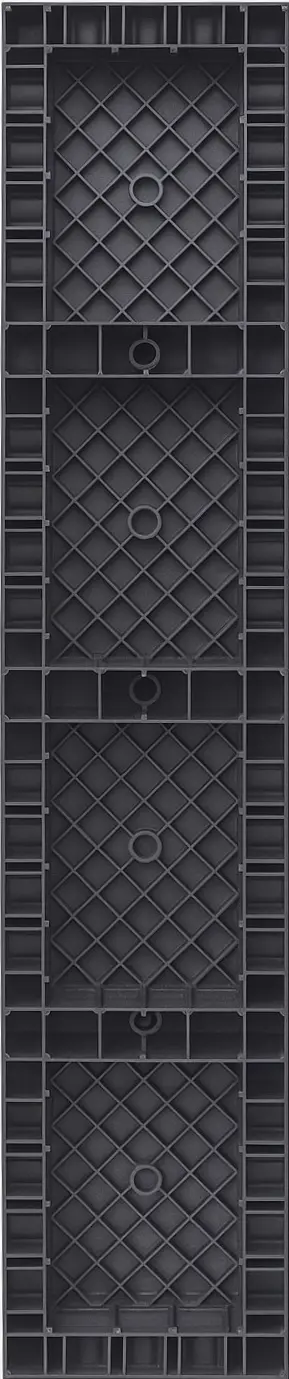

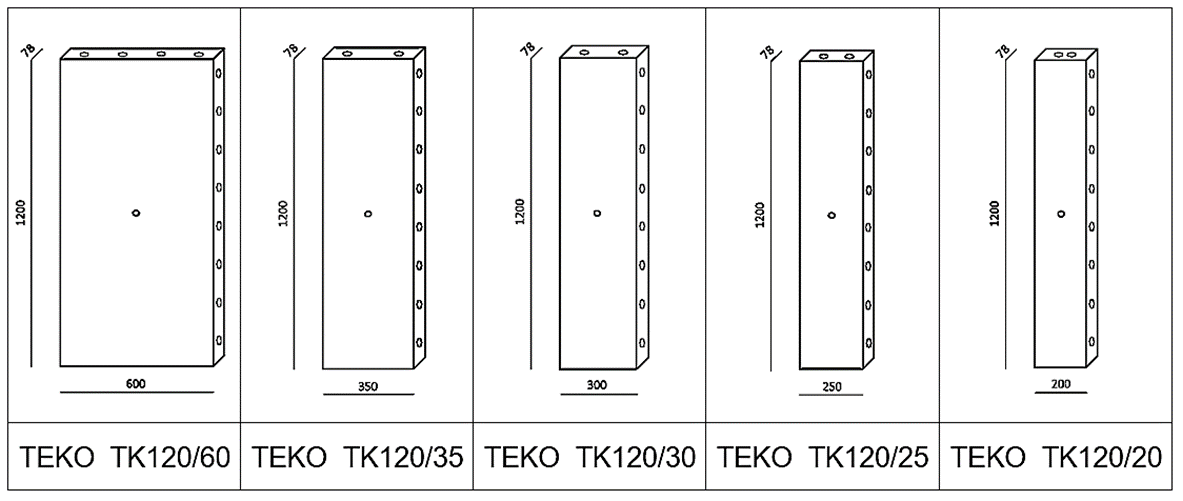

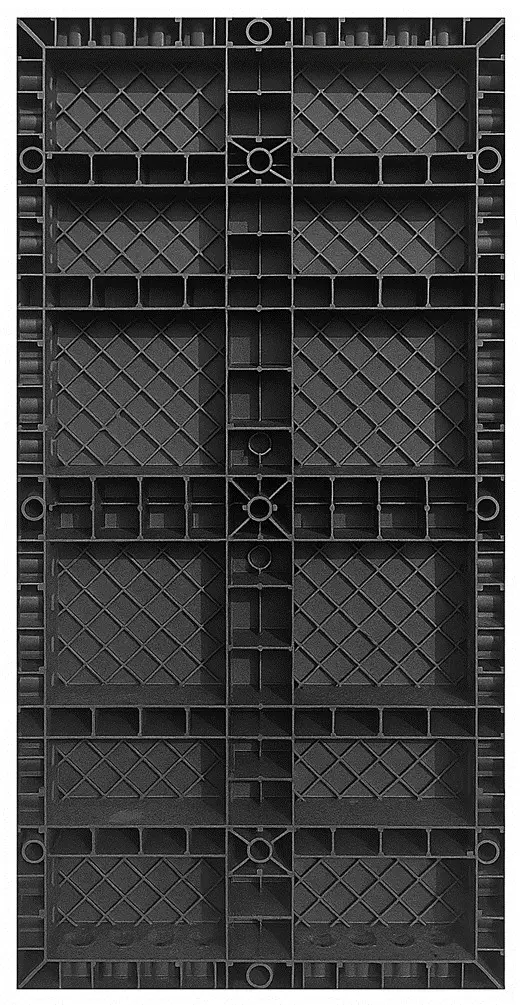

TEKO Plastic Formwork Panels – Height 120 cm
Durable and reusable TEKO formwork panels, 120 cm in height, offered in dimensions: 120×60 cm, 120×35 cm, 120×30 cm, 120×25 cm, and 120×20 cm. Perfect for modular formwork systems used in vertical concrete structures.

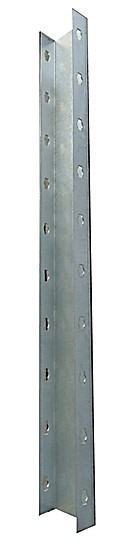

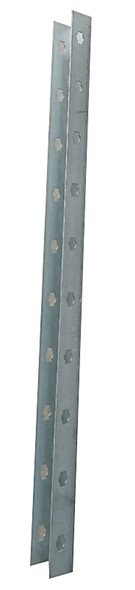

TEKO Plastic Formwork – Compensators
Compensators with dimensions: 150×15 cm, 150×10 cm, 150×5 cm, 120×15 cm, 120×10 cm, and 120×5 cm. These compensators allow precise fitting between panels and provide high flexibility in the formwork system.

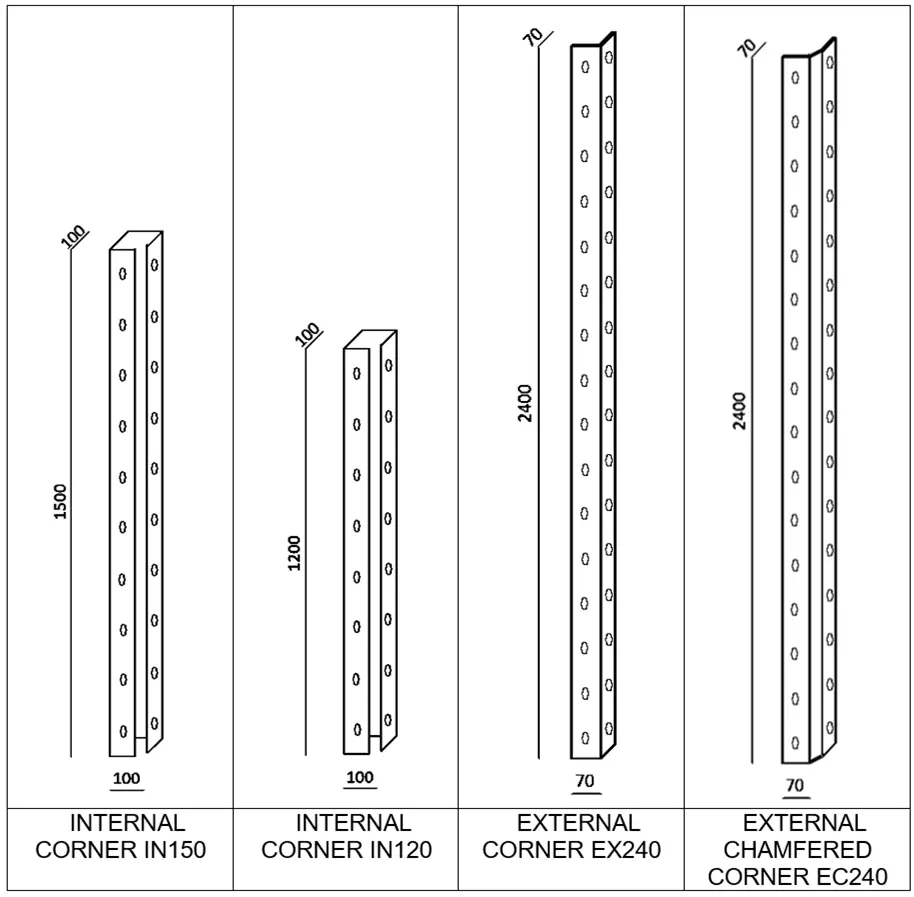

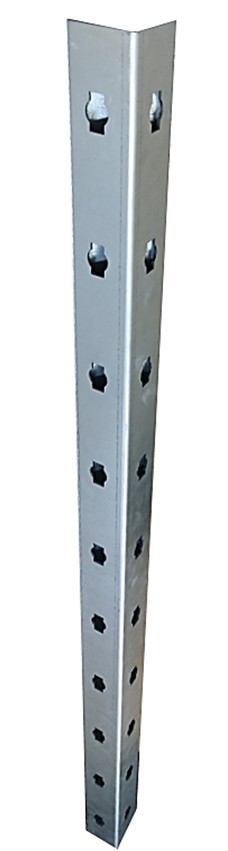

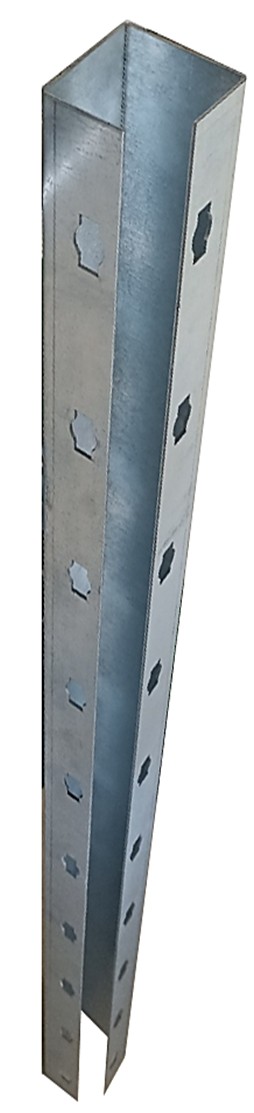

TEKO Plastic Formwork – Internal, External and Chamfered Corners
Internal corners (IN): 150x10x10 cm and 120x10x10 cm, External corners (EX): 240x7x7 cm, External chamfered corners (EC): 240x7x2,5×7 cm. Ensure stable, clean, and reliable corners in formwork setups.

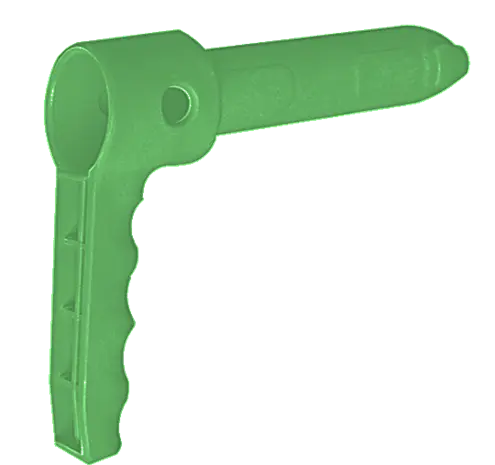

Handle H8 for TEKO Plastic Formwork
A key element of the TEKO plastic formwork system. The H8 handle ensures quick and secure panel connections with perfect alignment.

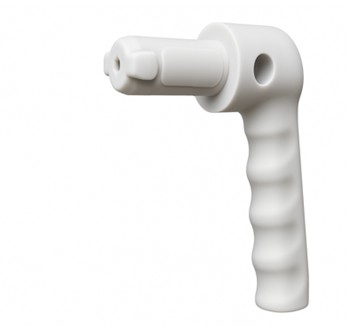

Handle H4 for TEKO Plastic Formwork
Specially designed for connecting panels with compensators and corners, the H4 handle plays an essential role in flexible and strong formwork construction.

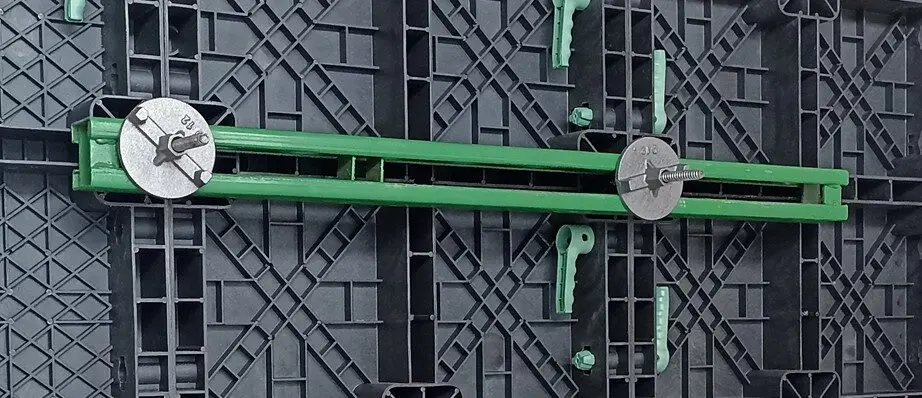

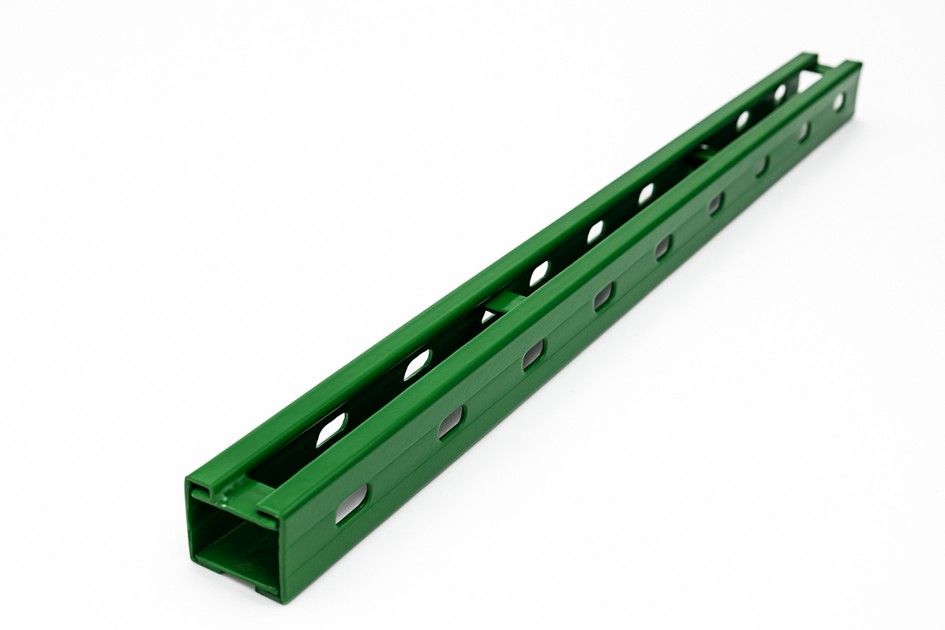

Alignment Waling
Alignment waling in lengths of 1.00 m, 2.00 m, and 3.00 m maintain straightness and horizontal stability of formwork panels. A mandatory component for straight and safe formwork.

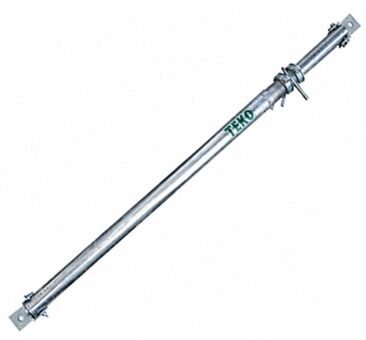

Pull Push Prop
Adjustable pull-push prop (2.10 m to 3.50 m) provide vertical support to the formwork, ensuring alignment during pouring and curing.
Tie Rod
D12 mm diameter and 1.00 m length tie rods for securing panel positions and bearing pressure during concrete work.

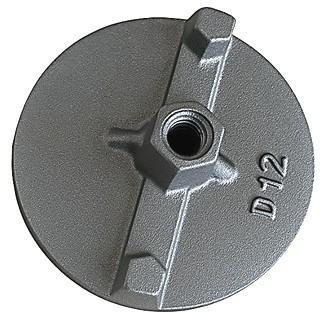

Nut
Nut with inner diameter D12 mm and outer diameter D100 mm. Standard component for securing tie rods in place.

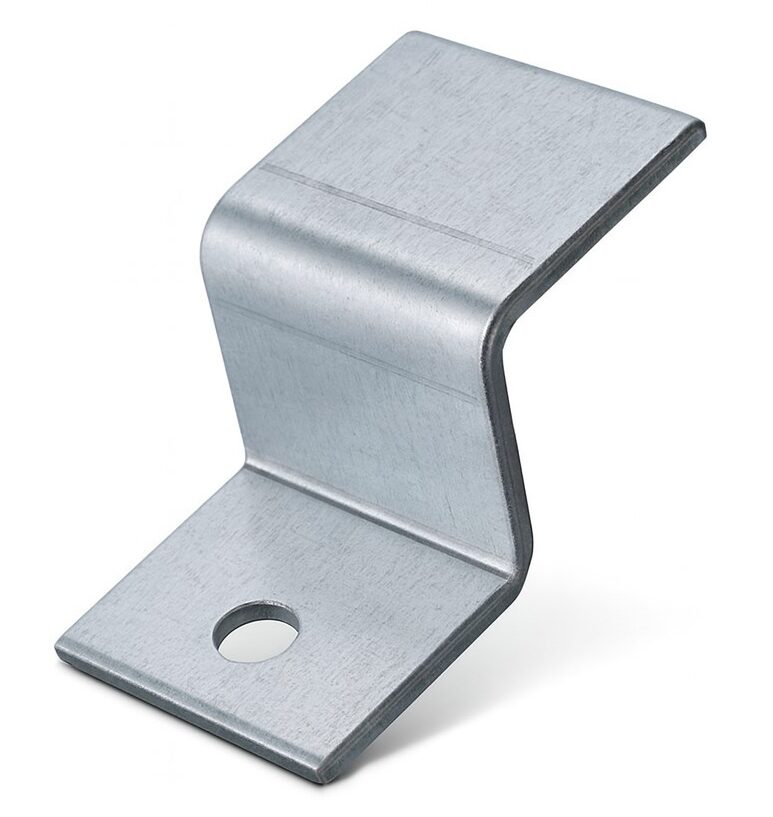

Fixing Plate 40х40×45
The fixing plate 40x40x45 is used to fix the formwork to a horizontal base.

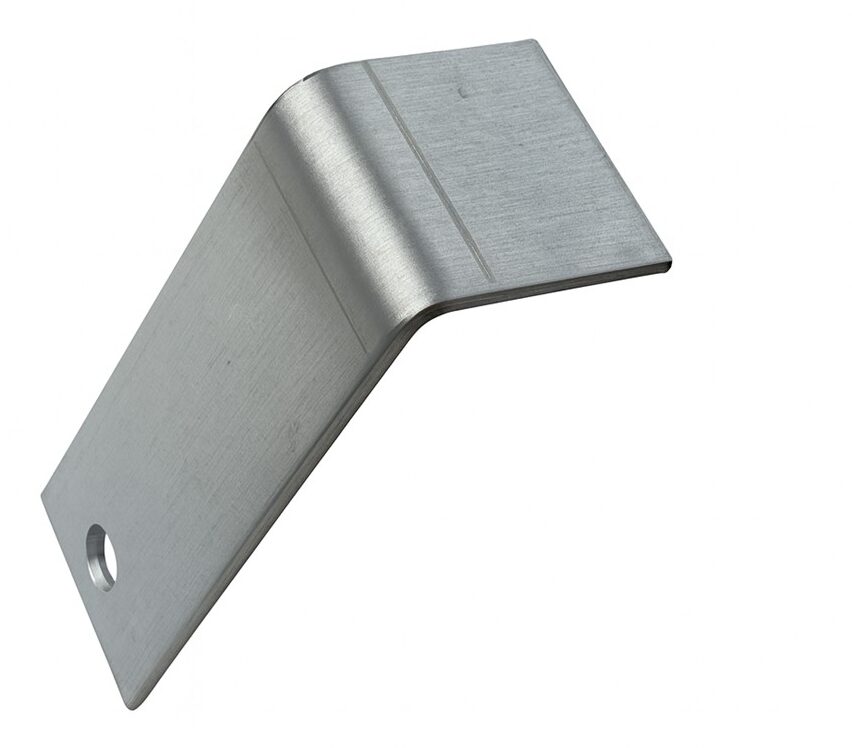

Fixing Plate 120х40
The fixing plate 120×40 is used to fix the formwork to the vertical side of a concrete element when the formwork is aligned along the edges of slabs, foundations, etc.
You can see all the elements of the system in the table
| Product | Dimensions [cm] | Surface area [m²] | Unit Weight [kg] |
|---|---|---|---|
| Main products TEKO | |||
| Panel TEKO TK 150/60 | 150/60/7,8 | 0,900 | 12,60 |
| Panel TEKO TK 150/35 | 150/35/7,8 | 0,525 | 7,35 |
| Panel TEKO TK 150/30 | 150/30/7,8 | 0,450 | 6,30 |
| Panel TEKO TK 150/25 | 150/25/7,8 | 0,375 | 5,25 |
| Panel TEKO TK 150/20 | 150/20/7,8 | 0,300 | 4,20 |
| Panel TEKO TK 120/60 | 120/60/7,8 | 0,720 | 10,08 |
| Panel TEKO TK 120/35 | 120/35/7,8 | 0,420 | 5,88 |
| Panel TEKO TK 120/30 | 120/30/7,8 | 0,360 | 5,04 |
| Panel TEKO TK 120/25 | 120/25/7,8 | 0,300 | 4,20 |
| Panel TEKO TK 120/20 | 120/20/7,8 | 0,240 | 3,36 |
| Handle H8 | 8 | 0,08 | |
| Compensator TC150/15 | 150/7/15/7 | 0,225 | 9,58 |
| Compensator TC150/10 | 150/7/10/7 | 0,150 | 7,82 |
| Compensator TC150/5 | 150/6/5/6 | 0,075 | 5,51 |
| Compensator TC120/15 | 120/7/15/7 | 0,180 | 7,66 |
| Compensator TC120/10 | 120/7/10/7 | 0,120 | 6,26 |
| Compensator TC120/5 | 120/6/5/6 | 0,060 | 4,41 |
| Internal corner IN150 | 150/10/10 | 0,3 | 10,63 |
| Internal corne IN120 | 120/10/10 | 0,24 | 8,51 |
| External corner EX240 | 240/7/7 | 7,12 | |
| External chamfered corner EC240 | 240/7/7/3,5 | 0,084 | 9,19 |
| Handle H4 | 4,3 | 0,06 | |
| Alignment waling AW100 | 100 | 4,50 | |
| Alignment waling AW200 | 200 | 9,00 | |
| Alignment waling AW300 | 300 | 13,50 | |
| Tie rod d12 TR12 | 1,2/100 | 0,66 | |
| Nut d12/D100 N12 | 10 | 0,44 | |
| Pull push prop PP | 210 – 350 | 10,00 | |
| Small panels TEKO | |||
| Panel TEKO TK 60/40 | 60/40/7,8 | 0,240 | 3,36 |
| Panel TEKO TK 60/30 | 60/30/7,8 | 0,180 | 2,52 |
| Panel TEKO TK 60/25 | 60/25/7,8 | 0,150 | 2,10 |
| Panel TEKO TK 60/20 | 60/20/7,8 | 0,120 | 1,68 |
| Panel TEKO TK 60/15 | 60/15/7,8 | 0,090 | 1,26 |
| Panel TEKO TK 40/25 | 40/25/7,8 | 0,100 | 1,40 |
| Panel TEKO TK 20/20 | 20/20/7,8 | 0,040 | 0,56 |
| Panel TEKO TK 20/15 | 20/15/7,8 | 0,030 | 0,42 |
| Panel TEKO TK 15/15 | 15/15/7,8 | 0,0225 | 0,32 |
| Handle H5 | 5 | 0,06 | |
| Handle H6 | 6,5 | 0,07 | |
| Fixing plate FP 40/40/45 | 4/4/4,5 | 0,14 | |
| Fixing plate FP 120/40 | 12/4 | 0,19 | |
